Phlex Carbon CFTM

Carbon Fiber Non-Woven | Versatile Materials for the Way You Manufacture

Every manufacturing process has its own material requirements. PhlexCarbon CFTM gives manufacturers flexibility within a single non-woven format, with options across carbon fiber grades, thermoplastic fibers and areal weights.

PhlexCarbon CFTM is a wet-laid mat of randomly oriented carbon fibers co-mingled with thermoplastic fibers. Ideal for compression molding, it is available using high-strength (standard-modulus) or intermediate-modulus carbon fiber and can be combined with a range of thermoplastic fibers.

Produced in Lake City, South Carolina, PhlexCarbon CFTM utilizes repurposed carbon fibers.

Request a Sample/Quote

Contact Our Team

SCROLL TO EXPLORE

One Material Format, Multiple Possibilities

The right combination of carbon fiber and thermoplastic depends on what you're manufacturing. That's why  PhlexCarbon CFTM isn't limited to a single fiber configuration.

Choose between high-strength (standard-modulus) and intermediate-modulus carbon fiber, with thermoplastic options  ranging from standard fibers such as PP, PET and PA6 to more advanced fibers such as PPS and PEEK. This gives you a range of available material combinations within a wet-laid, randomly oriented mat designed for compression molding

View Phlex Carbon CFTM Technical Data Sheet

01.

High-Strength(Standard-Modulus) Carbon Fiber

PhlexCarbon CFTM is available with high-strength, standard-modulus carbon fiber featuring a 7-micron filament diamete

The high-strength fiber has a tensile strength of 4,413 MPa, tensile modulus of 231 GPa and elongation at break of 1.7%.

02.

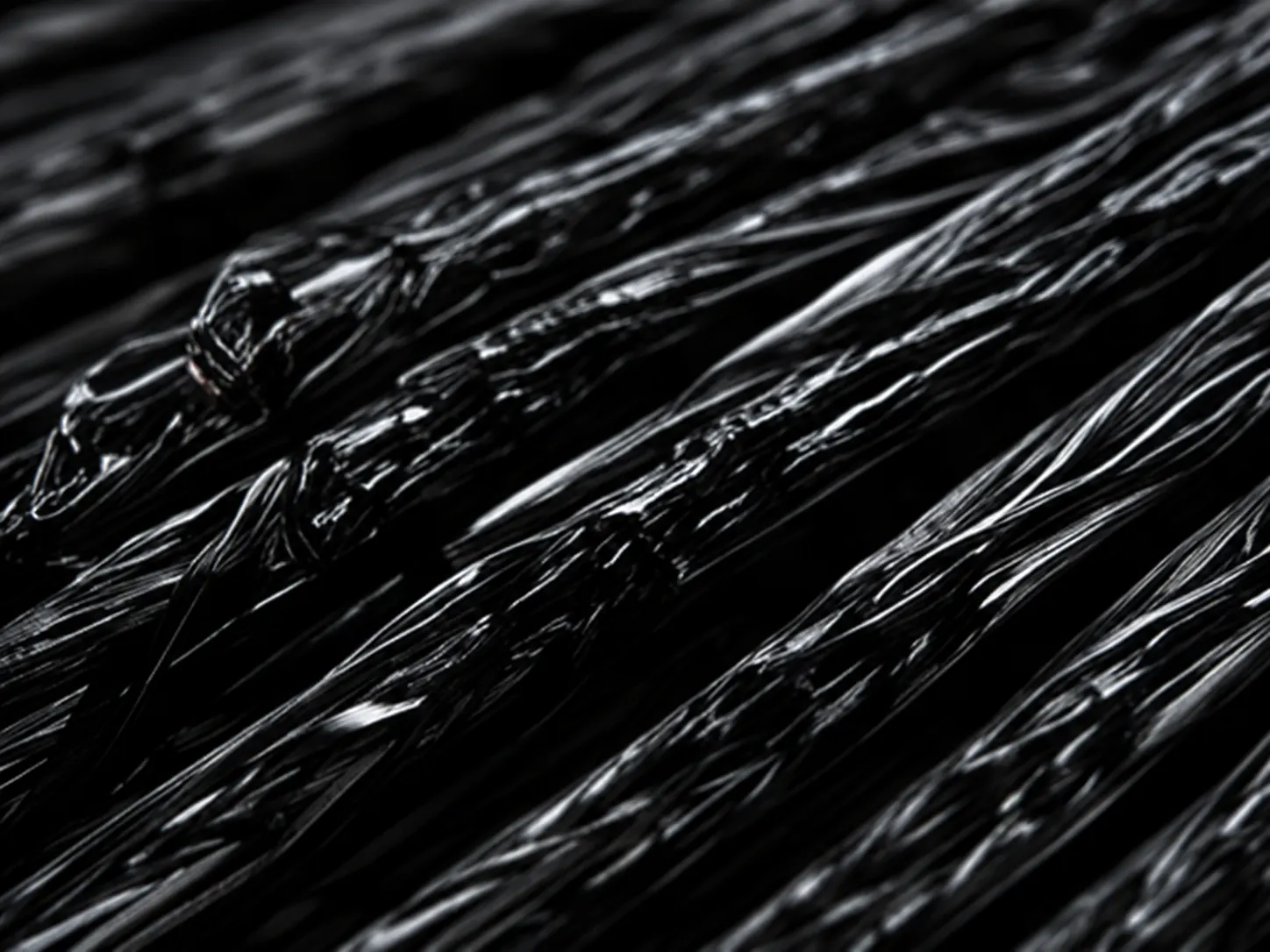

Intermediate-Modulus Carbon Fiber

For requirements calling for intermediate-modulus fiber, PhlexCarbon CFTM is also available with a 5-micron filament diameter.

The intermediate-modulus fiber has a tensile strength of 5,480 MPa, tensile modulus of 276 GPa and elongation at break of 1.9%.

More Flexibility in the Details

Material requirements don't always fit neatly into a standard specification.  PhlexCarbon CFTM is available in 100, 200 and 400 g/m² areal weights, with other custom weights available upon request.

The material is supplied in roll form at a 1.2 m width and nominal 400–500 mm roll diameter. Stitch bonding is also available upon request.

Whether you're evaluating a standard configuration or have different weight requirements in mind, talk to our team about the options available for  PhlexCarbon CFTM.

Typical Properties

Property	PhlexCarbon CFTM
Fiber Length	13 mm nominal
Areal Weight Variation	±6% (coefficient of variation)
Content	98% repurposed carbon fiber, 2% binder fiber
Filament Diameter	7 microns (high strength); 5 microns (intermediate modulus)
Sizing Content	0%
Form	Roll
Roll Width	1.2m
Roll Diamete	400–500 mm nominal
Stitch Bonding	Available upon request
Carbon Fiber Properties
Property	High	Intermediate
Tensile Strength	4,413 MPa	5,480 MPa
Elongation at Break	1.7%	1.9%
Tensile Modulus	231 GPa	276 GPa

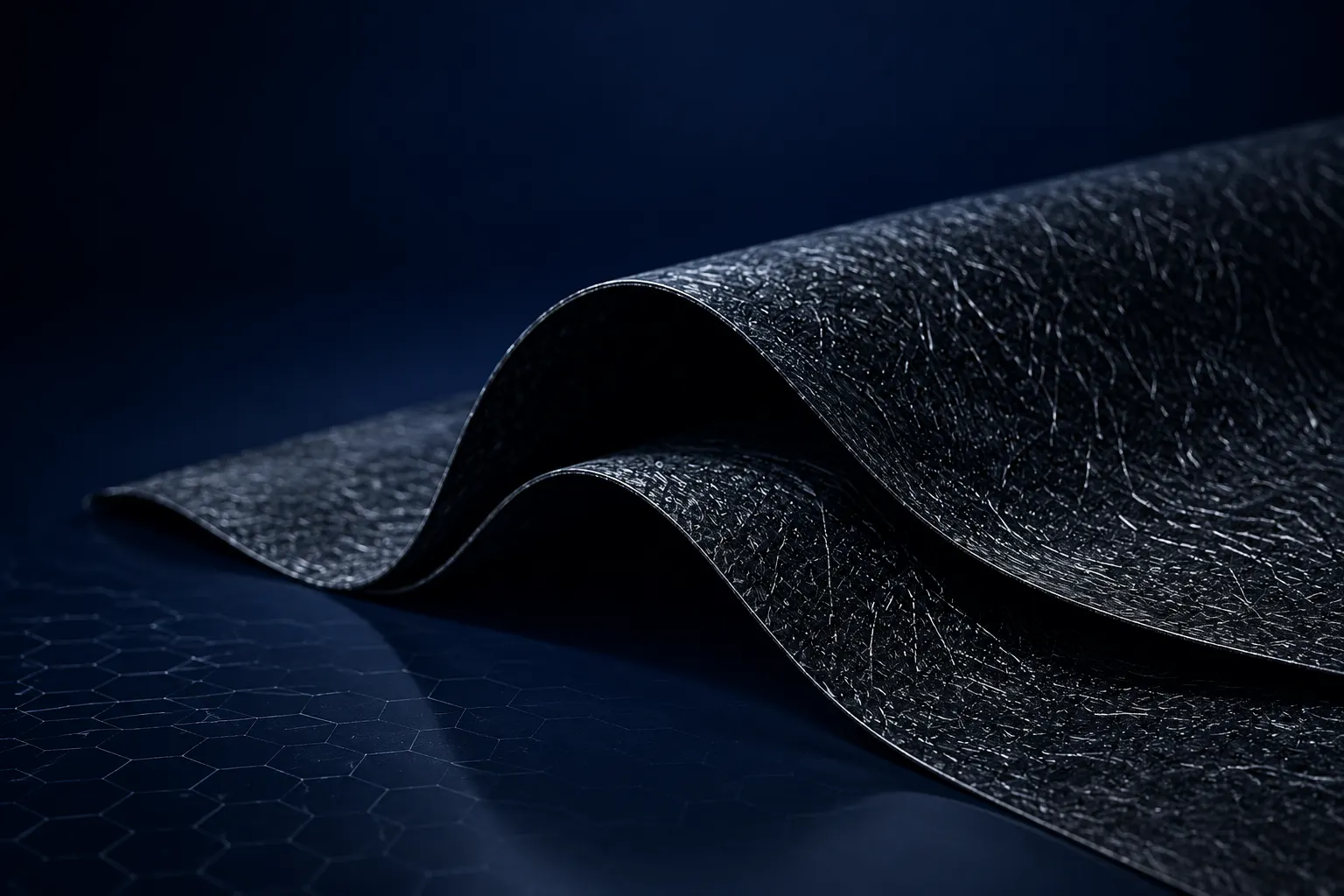

Available Areal Weights

100 g/m²

200 g/m²

300 g/m²

PhlexCarbon CFM is packaged one roll per box, with net weight varying depending on areal weight.

Have a Specific Material Requirement?

Whether you're deciding between high-strength and intermediate-modulus fiber, considering different areal weights or looking for stitch bonding, our team is here to help you explore the available PhlexCarbon CFTM configurations.

Tell us what you're looking for, and we'll help you navigate the available options for your process.

Request a Sample

Talk to Our Team

Frequently asked questions

The appropriate configuration depends on factors such as the required mechanical performance, thermoplastic matrix, and processing requirements. PhlexCarbon CFTM can be tailored using different carbon-fiber options and thermoplastic combinations to suit specific application needs
